9403 Printer Specifications:

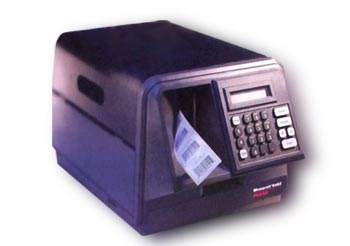

9403 Printer

Standard Features: (back to index)

Standard Features
Dimensions:	Height - 229 mm Width - 254 mm Depth - 419 mm Weight - 7 kg Shipping Weight - 10 kg
Printhead:	56 mm/448 dots 8.0 dots/mm
Display:	2 Line LCD, 16 Char. per line
Keypad:	21 Keys
PC/Host Interface:	Asynchronous RS-232C NONE, XON/XOFF, DTR, and CTS Flow Control 1200, 2400, 4800, 9600, 19.2K, or 38400 baud ASCII data transmisison code
Buffers Available (256K total):	Transmit, Receive, Formats, Images, Internal, and Downloadable Fonts. All buffers except Internal are user definable.
Character Sets Available:	Monarch Internal ANSI DOS Code Page 437 DOS Code Page 850
Fonts Available:	Standard, Reduced, Bold, OCRA-like, CG Triumvirate, CG Triumvirate Bold
Magnification available for all fonts:	1x to 7x
Black to White Print Ratio:	30% black maximum per square inch
Languages:	English, French, German, Spanish

Supplies
Only Monarch® supplies are recommended; use thermal transfer stock with ribbon or thermal direct stock. For high density and serial bar codes, Monarch "premium" supplies are recommended.
Ribbon Widths:	40 mm 54 mm The width of the ribbon must be greater than the supply width. Since some supplies are more abrasive to printheads than others, using a ribbon wider than your supply helps protect the printhead.
Supply Sizes:	Widths - 19 mm to 56 mm Lengths - 19 mm to 152 mm

Performance
Power:	U.S. - 115 V/60 Hz., 80 Watts nominal International - 220 V/50 Hz
Printing Rate:	51 mm per second
Printhead Warranty:	One million inches (or six months, whichever occurs first).

Environment Ranges
Temperature:	Operating Thermal Transfer 4° to 35° C Operating Thermal Direct 4° to 43° C Storage: -10° to 49° C
Humidity:	Operating and Storage: 5% to 90% non-condensing
Electrostatic Discharge and Air Quality:	Some problems with electronic equipment may occur in environments prone to static discharge or extreme dust conditions. Monarch suggests that you take precautions to minimize these problems. Contact your Monarch representative for recommended precautions.

This printer also prints high-density bar codes and bar codes in the serial direction.

Barcode Type	Narrow to Wide Ratio	% Density or CPI	Nominal Width (dots/mils)	Data Length
UPCA +2/+5	1:1.0	76%, 114%	2/9.9, 3/14.8	11 or 12, 14/17
UPCE +2/+5	1:1.0	76%, 114%	2/9.9, 3/14.8	6 or 7, 9/12
EAN8 +2/+5	1:1.0	76%, 114%	2/9.9, 3/14.8	7 or 8, 10/13
EAN13 +2/+5	1:1.0	76%, 114%	2/9.9, 3/14.8	12 or 13, 15/18
Interleaved 2of5	1:30 1:2.5 1:2.3 1:2.0	1.1, 3.2, 5.6, 7.5, 11.0, 11.2 2.1, 4.2, 6.3, 12.7 8.8, 9.6, 14.5, 21/103.4 7/34.5, 4/19.7, 3/14.8, 2/9.9, 2/9.9	12/59.1, 6/29.6, 4/19.7, 2/9.9 3/14.8 3/14.8, 2/9.9	0 to 2710
Extended Code39	1:30 1:2.5 1:2.2 1:2.0	4.2, 6.3, 12.7* 1.4, 1.7, 3.5, 7.0	3.0, 3.9, 3/14.8, 2/9.9, 1/4.9 10/49.3, 8/39.4, 4/19.7, 2/9.9 5/24.6, 4/19.7	0 to 2710
Codabar (NW7)	1:3.0 1:2.5 1:2.0	2.1, 8.4 3.0, 4.6, 9.2 5.1 10.1, 8/39.4, 2/9.9	6/29.6, 4/19.7, 2/9.9 4/19.7, 2/9.9	0 to 2710
Code 128	1:1.0	3.7/7.4, 4.6/9.2, 6.1/12.3, 9.2/18.4	5/24.6, 4/19.7, 3/14.8, 2/9.9	0 to 2710
Code 93	N/A	3.7 4.5 5.6 7.5	11.2, 6/29.6 5/24.6 4/19.7 3/14.8 2/9.9	0 to 2710
MSI	1:2.5, 1:2.0	7.2	4.2, 5.6, 2/9.9 4/19.7, 3/14.8	0 to 2710
* Parallel only for special application.

* Actual characters printed, excluding start/stop or check sum characters.

Barcode Type	Aspect Ratio	Security Level	Element Width (dots/mils)	Row Height (dots/mils)	Data Length
PDF417	1:1.0 1:2.0 1:3.0	0-8	2/9.8, 3/14.8, 4/19.7 3/10, 4/13.3, 6/20 3/10, 4/13.3, 6/20	2/9.8, 3/14.8, 4/19.7 4/19.7, 6/29.6, 8/39.4 6/29.6, 9/44.3, 12/59.1	0 to 2709

In our ongoing effort to deliver the best technology, specifications are subject to change without notice.
