Capture Signatures Digitally
Dolphin with Image-Capture™ handheld computer

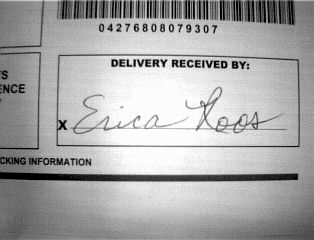

incorporates a low-power, high-resolution digital camera to capture signatures, airbills,

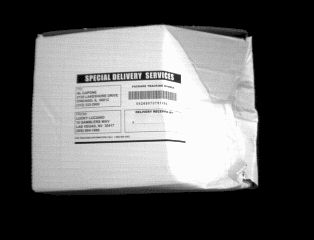

damaged cartons or any other image
A small CMOS camera integrated with an optional
laser scanner allows you to scan bar codes and capture signatures or corporate seals, as
required by many international companies, all with the same handheld computer. Press a key
to capture and store the image, in seconds, for the ultimate proof of delivery. Capture 6
images per minute and store more than 100 images using Dolphin with Image-Capture™.
Comfortable Patented Shape
Allows true, one-handed operation. Fits either hand comfortably.
Light Weight and Pocket-Sized
Just 12 ounces (340 grams) and ergonomically designed for the user's hand.
Easy To Program
Program in MicroSoft C++, Borland..
Proven, Rugged and Reliable
The Dolphin's extra thick ABS case can handle repeated 5-foot (1.5m) drops to concrete.
Its gasketed seams earned an IP65 (environmentally sealed) rating. Single board
construction eliminates weak mechanical connections and epoxy-coated keys prevent keyboard
legend wear. The Dolphin is designed for years of tough, every day use.
Large, Easy-to-Read 8-line x 20-character Backlit Display
Can display text or graphics, including foreign character sets. Natural scan and viewing
angle.
Reliable Optical Communications
Dolphin uses reliable infrared optical communications to upload and download data to PC's
and printers..
Scan or Key-In Data
Non-contact laser reads all standard bar code symbologies. Up to 72" (183 cm) with
reflective labels.
2 convenient keyboard options:
- 36 Key Alpha-Numeric Keypad
- 20 Key Numeric-Alpha Keypad
Long Battery Life
Up to 32,000 scans or 20 hours of operation from a single charge
Memory to Spare
Expand up to 12MB of memory. (2MB RAM + 10MB Non-volatile FLASH)
